350 GB MINI Injection Molding Machine with Automatic Heating Time Setting
Product Advantages
Mold opening and closing with 5 segment speed closed-loop control provides exact location of mold opeining.
Injection with 5 segment closed-loop control.
Hold pressure with 5 segment closed-loop control.
Three kinds of switch mode for hold pressure:time,time+location and time+pressure.
Charge with 5 segment, back pressure with closed-loop control.
Temperature is controlled by AUTO+PID to guarantee its exact.
High clear color display showing the information.
Parameters
| CWI-280GB CWI-350GB | | Model | CWI-280GB | CWI-350GB | | Clamping Device | 锁模力 Kn | Clamping Force | 2800 | 3500 | | 拉杆间距 mm | Space Between Tie-bars | 630×630 | 710×710 | | 开模最大开距 mm | Clamping Stroke | 600 | 680 | | 最大模厚 mm | Mould Thickness Max | 650 | 720 | | 最小模厚 mm | Mould Thickness Min | 240 | 260 | | 模板尺寸 mm | Size of Platen | 915×915 | 1020×1020 | | 顶出长度 mm | Ejector Stroke | 170 | 200 | | 顶出力 Kn | Ejector Force | 80 | 80 | | 顶针数 | Ejector Quantily | 13 | 13 | | | | | 1100D | 1700D | 1700D | 2800D | | Injection Device | 螺杆直径 mm | Screw Diameter | 50 | 55 | 60 | 55 | 70 | 60 | 65 | 70 | 70 | 75 | 80 | | 螺杆长径比 | Screw L/D ratio | 23.3 | 21 | 23.1 | 21 | 19.5 | 22.8 | 21 | 19.5 | 22.3 | 21 | 19.8 | | 理论射胶容积 cm3 | Shot Size | 487 | 589 | 820 | 962 | 1115 | 820 | 962 | 1115 | 1385 | 1590 | 1809 | | 注射重量 (PS)g | Shot Weight | 448 | 542 | 754 | 885 | 1026 | 754 | 885 | 1026 | 1274 | 1462 | 1664 | | 注塑压力 Mpa | Injection Pressure | 231 | 191 | 215 | 183 | 158 | 215 | 183 | 158 | 204 | 178 | 156 | | 注射速度 mm/s | Injection Speed | 128 | 95 | 121 | 95 | | 注塑速率 cm3/s | Injection Rate | 251 | 304 | 268 | 315 | 365 | 341 | 400 | 464 | 365 | 419 | 477 | | 螺杆最大转速 rpm | Screw Speed | 220 | 180 | 200 | 160 | | Else | 油泵电机功率 Kw | Motor Power | 36 | 48 | | 油泵排量 L/min | | 220 | 275 | | 电热功率 Kw | Heater Power | 15.9 | 22.4 | 22.4 | 30.2 | | 机器净重 ton | Machine Weight | 11.8 | 13 | | 机器尺寸(长×宽×高) mm | Machine Dimension | 6375×1650×2250 | 6750×1920×2350 | |
Features of Two Template Injection Molding Machine
Two-plate mold (one-time parting mold):
Generally, it is divided into a fixed template and a moving template at the parting surface.
1. After molding, cut off the molded product and the sprue, and process it (such as: side gate, straight gate).
2. Simple structure and easy to use.
3. It is suitable for the product to fall automatically. (latent gate, no post-processing required)
4. Few faults and low price.
Injection molding is a cyclic process, each cycle mainly includes: quantitative feeding-melting and plasticizing-pressure injection-filling and cooling-mould opening and taking parts. After taking out the plastic part, the mould is closed again for the next cycle.
The time of Ouco Injection molding process is 18 seconds.

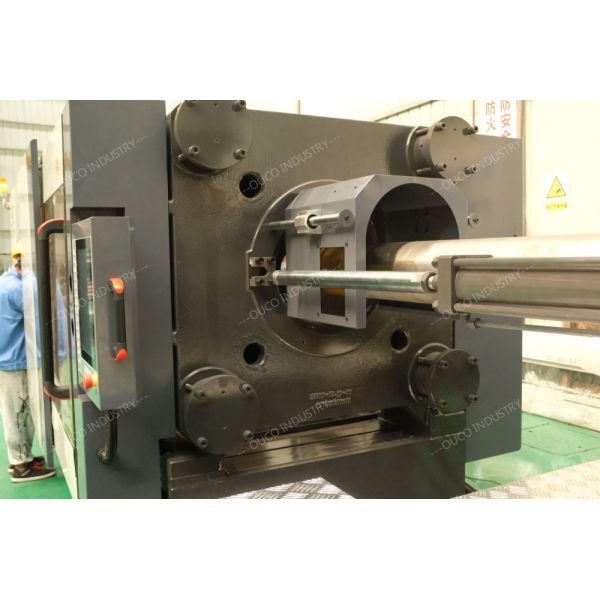

Detail Pictures
