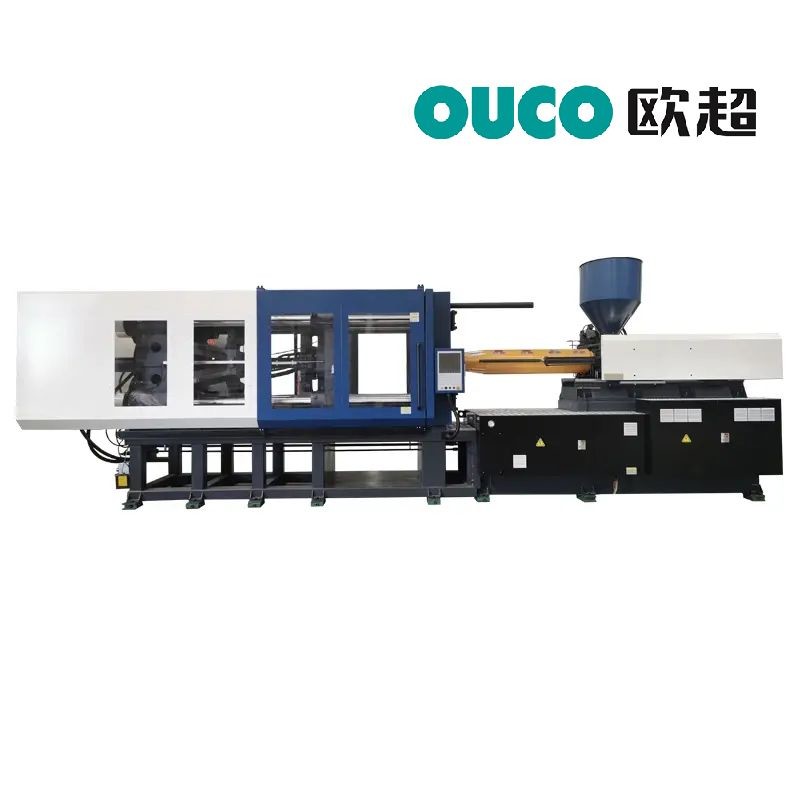

Automation Injection Molding Machine 11Kw With Fast Response 42mm

Name: Automation Injection Molding Machine 11Kw With Fast Response 42mm
Brand: OUCO
Price: 1 USD

Brand Name : OUCO

Model Number : OUCO-LYH1280

Certification : CE, ISO9001:2008, SGS

Place of Origin : China

MOQ : 1

Price : Negotiable

Payment Terms : T/T, Western Union, L/C

Supply Ability : 500 sets/year

Delivery Time : 2 months

Packaging Details : Nude

Product Name : Automated Injection Molding Machine With Fast Response And Precise Control

Type : Automation

Function : Plastic Parts Production

Motor : Servo Energy Saving

Color : Support customization

Stable Performance : Short Cycle Time

Clamping Way : Hydraulic

Transport Package : FCL

Contact Now

Automated Injection Molding Machine With Fast Response And Precise Control

The OUCO small precision series injection molding machine uses a dedicated controller for injection molding machines, which has high-frequency response characteristics.

Equipped with automatic control function for temperature deviation of the material barrel.

Detect abnormalities during the production process and promptly report to the police.

Using well-known brand electrical accessories to ensure the safe and reliable operation of electrical equipment.

Product Advantages

Optimized locking structure for design

Design of high rigidity formwork structure

Equipped with electrical and mechanical safety protection devices

Automatic centralized lubrication system

Parameters

MODEL		OUCO-LYH1280
CLAMPING UNIT	clamping force (kN)	1280
	Tie bar distance W×L (mm)	415*375
	Max. mold thickness (mm)	450
	Min. mold thickness(mm)	150
	Platen Dimensions W×L (mm)	605*570
	Ejector Stroke(mm)	120
	Ejector Force(Kn)	40
	Ejector Quantily	5
AS		A	B
Injection Unit	Screw Diameter(mm)	42	45
	Screw L/D ratio	20	19
	Theoretical injection volume (cm3)	221	256
	Shot Weight (PS) g	205	238
	Injection Pressure(MPa)	170	149
	Injection Rate (g/s)	110	120
	Screw Speed (rpm)	330	250
Other	Motor Power (Kw)	11
	Heater Power (Kw)	6.9
	Machine Weight (kg)	3.8
	Machine size L×W×H (m)	4.41.361.8

Detail Pictures
Automation Injection Molding Machine 11Kw With Fast Response 42mm

Automation Injection Molding Machine 11Kw With Fast Response 42mm

Company Profile

Automation Injection Molding Machine 11Kw With Fast Response 42mm
