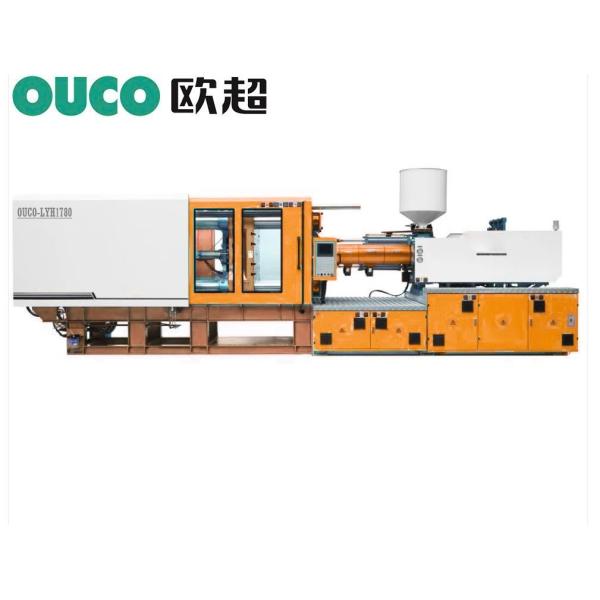

High Cost Performance Injection Molding Machine Servo Energy-Saving Economical
OUCO has strict execution standards in production and assembly, and is manufactured in full accordance with the ISO9001:2000 quality control quality management system. Therefore, the equipment has good quality, strong stability, and long service life. We accept customization and can provide feasible solutions based on the specific needs of customers, helping them customize suitable products.
Product Advantages
1. Servo control, completely eliminating high-pressure throttling, saving 50% -80% electricity compared to asynchronous motors and quantitative pumps,
Compared to asynchronous motors and variable displacement pumps, it saves 30% -50% electricity.
2. Fast response, with 0-100% acceleration and deceleration time ≤ 0.1 seconds, and 0-100% pressure change up to 30ms, improving production efficiency.
3. The control is precise, with a repeatability error of 0.1%, and the product is precise.
4. Strong high overload capacity, servo torque overload multiple ≥ 200%.
5. Flexible state transition: Speed and torque control are flexibly switched and smooth.
6. Reduce the hydraulic oil temperature, reduce the amount of cooling water by more than 30%, and in some cases, even completely eliminate the need for water cooling.
7. Reduce the impact of mold opening and locking, and extend the service life of hydraulic oil pumps, machinery, and molds.
8. Reduce noise and improve work environment.
Parameters
| MODEL | OUCO-LYH1780 |
| CLAMPING UNIT | clamping force (kN) | 1780 |
| Tie bar distance W×L (mm) | 465*465 |
| Max. mold thickness (mm) | 520 |
| Min. mold thickness(mm) | 180 |
| Platen Dimensions W×L (mm) | 675*675 |
| Ejector Stroke(mm) | 130 |
| Ejector Force(Kn) | 46 |
| Ejector Quantily | 5 |
| Injection Unit | Screw Diameter(mm) | 45 |
| Screw L/D ratio | 22 |
| Theoretical injection volume (cm3) | 381 |
| Shot Weight (PS) g | 347 |
| Injection Pressure(MPa) | 169 |
| Injection Rate (g/s) | 129 |
| Screw Speed (rpm) | 180 |
| Other | Motor Power (Kw) | 15 |
| Heater Power (Kw) | 11.5 |
| Machine Weight (kg) | 5.2 |
| Machine size L×W×H (m) | 5.1*1.2*2.1 |

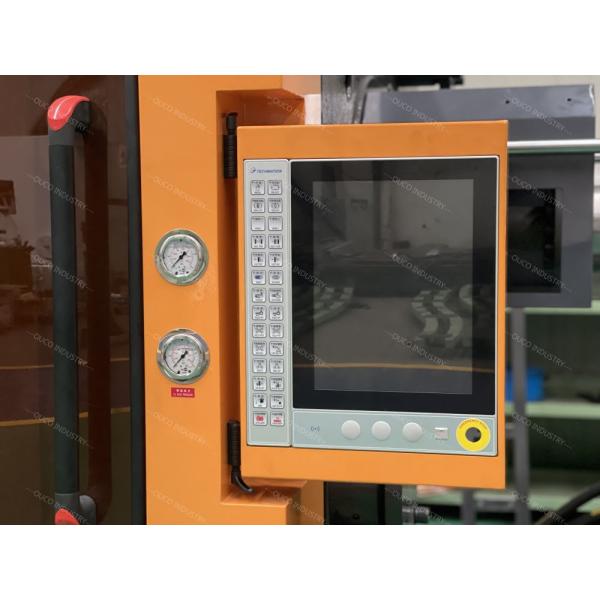

Detail Pictures
