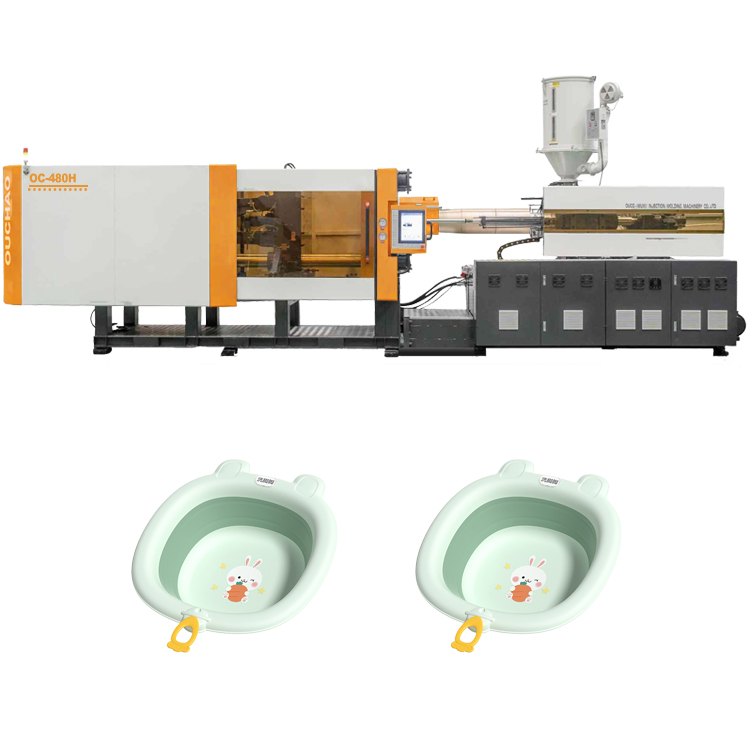

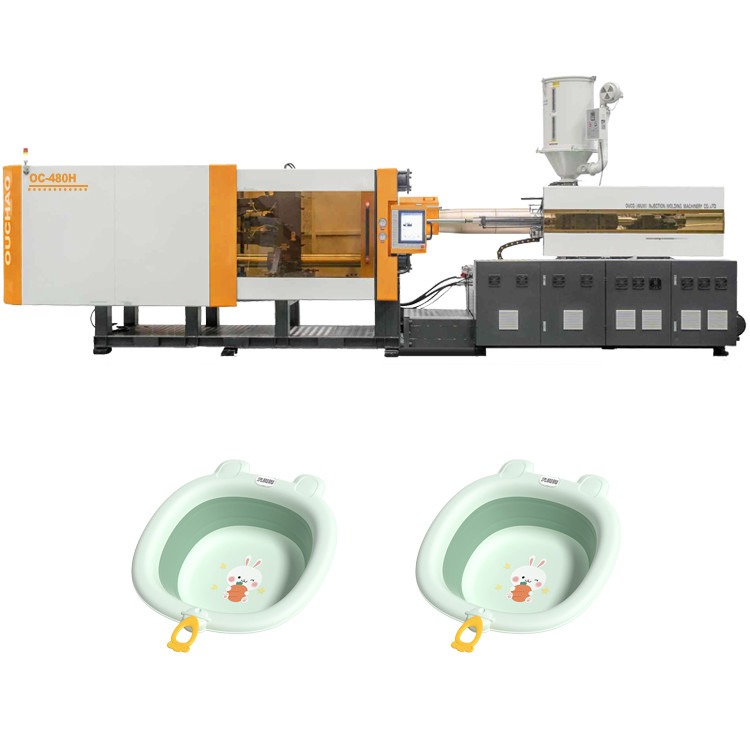

480t Small Injection Molding Machine Support Customization High Precision
OUCO's success cannot be separated from their professional team and advanced technology. They have an experienced and skilled R&D team, which constantly launches innovative products to meet the changing needs of the market. At the same time, they also pay great attention to technology research and development, introducing and digesting and absorbing international advanced technology to continuously improve the competitiveness of their products. In addition to the advantages of the products themselves, OUCO also pays great attention to customer service. They insist on being customer-centred, providing a full range of pre-sale, in-sale and after-sale services to ensure that every customer can get a satisfactory solution. This spirit of excellence has made OUCO popular and chosen by customers in both domestic and international markets. In the future, OUCO will continue to uphold the concept of professionalism, innovation and service, and contribute more to the global injection moulding machine industry.
Product Advantages
1. Stable and efficient mould opening and closing: OUCO 480T injection moulding machine has stable and efficient mould opening and closing movements. Through precise computer control and servo motor drive, the speed and force of mould opening and closing are optimized to achieve shorter cycle time. This helps to increase productivity and reduce production costs.
2. Energy on demand: The OUCO 480T injection moulding machine realises energy on demand. This means that the machine is able to adjust the energy supply precisely according to the actual needs, avoiding wastage of energy. This design not only helps to save energy, but also helps to reduce the noise and temperature when the machine is running, thus protecting the environment to a certain extent.
3. We attach importance to environmental protection and energy saving, so we pay special attention to energy saving and emission reduction in our design. Through the advanced energy management system, we can realise the precise distribution of energy, giving as much as needed and avoiding unnecessary waste. This design not only reduces power consumption, but also saves companies a lot of operating costs.
Parameters
| MODEL | OCH-480T |
| Clamping force (kN) | 4800 |
| Space between tie bar (mm*mm) | 820*780 |
| Max. mold thickness (mm) | 730 |
| Min. mold thickness(mm) | 300 |
| Opening stroke (mm) | 900 |
| Ejector stroke(mm) | 190 |
| Ejector force forward(Kn) | 80 |
| Screw diameter(mm) | 85 |
| Screw L/D ratio | 22 |
| Theoretical injection volume (cm3) | 2355 |
| Shot weight (PS) g | 2275 |
| Injection pressure(MPa) | 141 |
| Injection speed (mm/s) | 106 |
| Injection rate (g/s) | 583 |
| Motor power (Kw) | 65 |
| Oil tank capacity(L) | 680 |
| Heater power (Kw) | 35 |
| Machine Weight (t) | 18 |
| Machine size L×W×H (m) | 8.6*2.1*2.2 |
Detail Pictures
