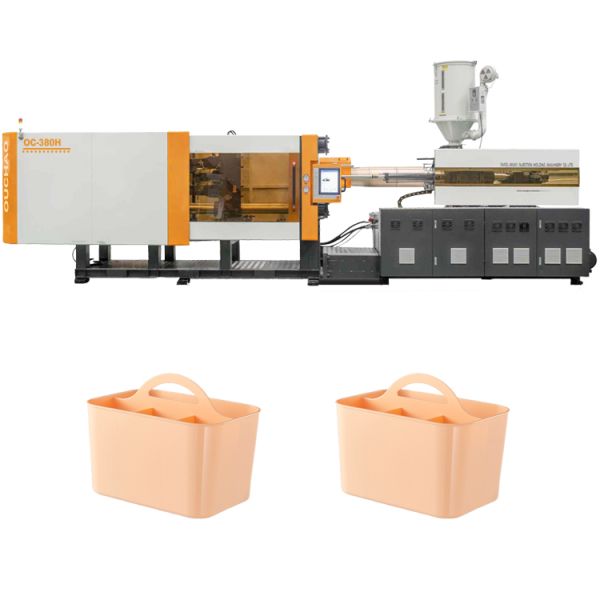

380T High Precision Production Storage Box Injection Moulding Machine

Brand Name : OUCO

Model Number : OCM-380H

Certification : CE, ISO9001:2008, SGS

Place of Origin : China

MOQ : 1

Price : Negotiable

Payment Terms : T/T, Western Union, L/C

Supply Ability : 500 sets/year

Delivery Time : 2 months

Packaging Details : Nude

Product Name : 380T Injection Molding Machine For Manufacturing High-Quality Desktop Trash Cans

Type : Automation

Function : Plastic Parts Production

Motor : Servo Energy Saving

Color : Support customization

Stable Performance : Short Cycle Time

Clamping Way : Hydraulic

Transport Package : FCL

Contact Now

380T High Precision Production Storage Box Injection Moulding Machine

OUCO injection moulding machines strive for steady growth in all areas, from the demand for high machine quality and strong clamping force, to the combination of high-tech European and Japanese microprocessor controllers. Our injection moulding machines are equipped with control systems and servo motors of well-known foreign brands, allowing OUCO to create innovative structural designs and become an industry leader. Over the years, OUCO has always treated every machine to the highest standards. Our R&D team, with years of experience, is able to use the company's various high-precision machining equipment to focus on the smallest details to create the perfect performance of the machine, and to continue to bring the next generation of injection moulding machines of a higher performance standard.Based on our business philosophy, we provide our customers with the best products and the most satisfactory service at reasonable prices.

Product Advantages

1. Use the exhaust effect to prolong the mould life; Commonly, the excessive clamping force causes the exhaust port to be blocked, it may lead to short shot and gas burning. We made an improvement and upgrade, this kind of problem basically doesn't occur. Our gas is correctly discharged from the PL side, which solves the short shot problem and controls mould deposits.
2. High-precision, highly responsive screw control: Thanks to a novelly structured injection system and low-inertia servo motors, the screw control is highly responsive. In addition, plasticising, filling and pressure holding are all accurately and stably controlled by self-developed algorithms, helping to reduce injection pressure and improve cavity balance.
3. Simple operation and manpower saving: the computer sets up the programme for accurate and error-free operation. The probability of stopping the machine is small and the production efficiency is high.



Parameters

                                                                 MODEL OCH-380T
Clamping force (kN) 3800
Space between tie bar (mm*mm) 720*680
Max. mold thickness (mm) 730
Min. mold thickness(mm) 300
Opening stroke (mm) 800
Ejector stroke(mm) 190
Ejector force forward(Kn) 62
Screw diameter(mm) 80
Screw L/D ratio 22
Theoretical injection volume (cm3) 1759
Shot weight (PS) g 1699
Injection pressure(MPa) 133
Injection speed (mm/s) 99
Injection rate (g/s) 481
Motor power (Kw) 47.5
Oil tank capacity(L) 125
Heater power (Kw) 27
Machine Weight (t) 13
Machine size L×W×H (m) 8.2*1.9*2.0

Detail Pictures

380T High Precision Production Storage Box Injection Moulding Machine380T High Precision Production Storage Box Injection Moulding Machine380T High Precision Production Storage Box Injection Moulding Machine380T High Precision Production Storage Box Injection Moulding Machine380T High Precision Production Storage Box Injection Moulding Machine
