Smart 730 Ton Horizontal Injection Molding Machine For Plastic Crate

Name: Smart 730 Ton Horizontal Injection Molding Machine For Plastic Crate
Brand: OUCO
Price: 1 USD

Buy cheap Smart 730 Ton Horizontal Injection Molding Machine For Plastic Crate product

Brand Name : OUCO

Model Number : OUCO-O730T

Certification : CE, ISO9001:2008, SGS

Place of Origin : China

MOQ : 1

Price : Negotiable

Payment Terms : T/T, Western Union, L/C

Supply Ability : 500 sets/year

Delivery Time : 2 months

Packaging Details : Nude

Product Name : 730 Ton Injection Molding Machine for Plastic Crate, Smart Operating System

Type : Automation

Function : Plastic Parts Production

Motor : Servo Energy Saving

Color : Support customization

Stable Performance : Short Cycle Time

Clamping Way : Hydraulic

Transport Package : FCL

Contact Now

730 Ton Injection Molding Machine for Plastic Crate, Smart Operating System

Product Details and Optimized functions :

1.Expanded motor and pump system, optimized hydraulic system for high performance and faster cycles. Like crate (less than 2kg) cycle time 20s;Spray paint bucket (780-800g) cycle time 20s.

2. Specially designed screw and barrel structure for faster plasticization and shorter loading cycle.

Optional bimetallic screw and barrel to be compatible with the recycled material of the box.

3. Optional automation equipment is available to improve production efficiency.

TECHNICAL PARAMETER TABLE

INJECTION UNIT

SCREW DIAMETER

105

SCREW L/D RATIO

L/D

INJECTION CAPACITY IN THEORY

cm3

4700

INJECTION WEIGHT(PS)

2820

INJECTION PRESSURE

MPa

166

INJECTION RATE

g/s

750

PLASTICIZING CAPACITY

g/s

130

SCREW SPEED

rpm

200

CLAMPING UNIT

CLAMPING FORCE

7300

MOVING MOULD-PLATE STROKE

950

MAX. MOULD HEIGHT

960

MIN. MOULD HEIGHT

400

SPACE BWTWEEN TIE-BARS (W×H)

1000x950

HYDRAULIC EJECTOR FORCE

200

HYDRAULIC EJECTOR STROKE

280

OTHERS

PUMP PRESSURE

MPa

17.5

MOTOR /DRIVING POWER

45+45+22

HEATING CAPACITY

MACHINE DIMENSION (L×W×H)

10.79*2. 45*3.31

MACHINE WEIGHT

OIL TANK CAPACITY

1315

TECHNICAL PARAMETER TABLE
INJECTION UNIT	SCREW DIAMETER	mm	105
	SCREW L/D RATIO	L/D	23
	INJECTION CAPACITY IN THEORY	cm3	4700
	INJECTION WEIGHT(PS)	g	2820
	INJECTION PRESSURE	MPa	166
	INJECTION RATE	g/s	750
	PLASTICIZING CAPACITY	g/s	130
	SCREW SPEED	rpm	200
CLAMPING UNIT	CLAMPING FORCE	KN	7300
	MOVING MOULD-PLATE STROKE	mm	950
	MAX. MOULD HEIGHT	mm	960
	MIN. MOULD HEIGHT	mm	400
	SPACE BWTWEEN TIE-BARS (W×H)	mm	1000x950
	HYDRAULIC EJECTOR FORCE	mm	200
	HYDRAULIC EJECTOR STROKE	KN	280
OTHERS	PUMP PRESSURE	MPa	17.5
	MOTOR /DRIVING POWER	KW	45+45+22
	HEATING CAPACITY	KW	50
	MACHINE DIMENSION (L×W×H)	m	10.792. 453.31
	MACHINE WEIGHT	t	34
	OIL TANK CAPACITY	L	1315

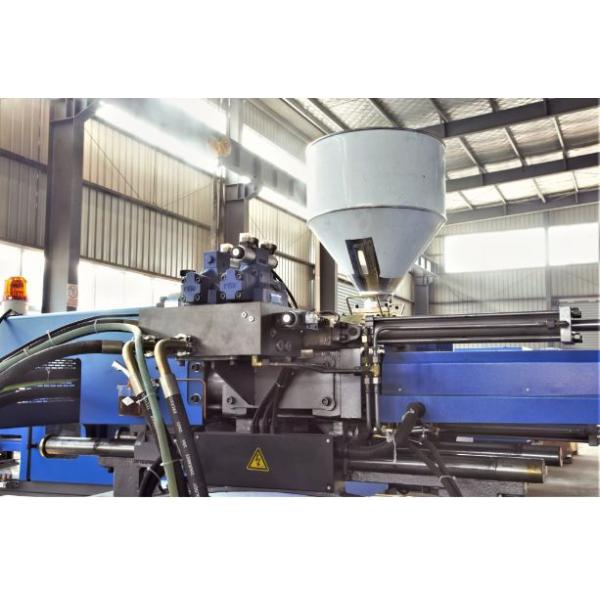

Detail Pictures

Smart 730 Ton Horizontal Injection Molding Machine For Plastic Crate
