SGS Fruit Basket Thermoplastic Injection Molding Machine For Plastic Box

Name: SGS Fruit Basket Thermoplastic Injection Molding Machine For Plastic Box
Brand: OUCO
Price: 1 USD

Brand Name : OUCO

Model Number : OUCO-CWI-1700S III

Certification : CE, ISO9001:2008, SGS

Place of Origin : China

MOQ : 1

Price : Negotiable

Payment Terms : T/T, Western Union, L/C

Supply Ability : 500 sets/year

Delivery Time : 2 months

Packaging Details : Nude

Product Name : Thermoplastic Injection Molding Machine for Plastic Box and Fruit Basket

Type : Automation

Function : Plastic Parts Production

Motor : Servo Energy Saving

Color : Support customization

Stable Performance : Short Cycle Time

Clamping Way : Hydraulic

Transport Package : FCL

Contact Now

Thermoplastic Injection Molding Machine for Plastic Box and Fruit Basket

OUCO CWI-1700S IIl series high-performance high-speed thin-wall injection molding machine is specially designed for high-speed thin-wall products, multi-cavity products and related civil products on the market. This model is built according to the latest national design concept, combined with the company's decades of design and manufacturing experience.

1. Work More Efficiently
According to the characteristics of injection molding, optimization and integration of injection molding, mold clamping, hydraulic, control and other units have greatly shortened the production cycle.

2. Stricter Safety Standards
Comply with national mandatory safety standards to ensure the safety of operators.

3. Better Organization
Frame design; based on finite element analysis, the rigidity and strength are improved, the rack accuracy is greatly improved, the rack deformation is reduced, and the operation is more stable and smooth.

Parameters

MODEL		CWI-1700S III
CLAMPING UNIT	clamping force (kN)	17000
	Tie bar distance W×L (mm)	1600*1400
	Max.Daylight(mm)	3300
	Max. mold thickness (mm)	1500
	Min. mold thickness(mm)	700
	Platen Dimensions W×L (mm)	2350*2150
	Ejector Stroke(mm)	400
	Ejector Force(Kn)	341
	Ejector Quantily	25
	Injection unit	11000I
Injection Unit	Screw Diameter(mm)	110	120	130
	Screw L/D ratio	22.6	21	19.4
	Theoretical injection volume (cm3)	5461	6500	7628
	Shot Weight (PS) g	4969	5915	6941
	Injection Pressure(MPa)	209	176	145
	Injection Speed (mm/s)	99
	Injection Rate (cm3/s)	948	1129	1325
	Screw Speed (g/s)	10-180
Other	Motor Power (Kw)	85
	pump capacity(L/min)	750
	Heater Power (Kw)	50+50+50+7.5
	Machine Weight (Ton)	85
	Machine size L×W×H (mm)	13500x3900x3250

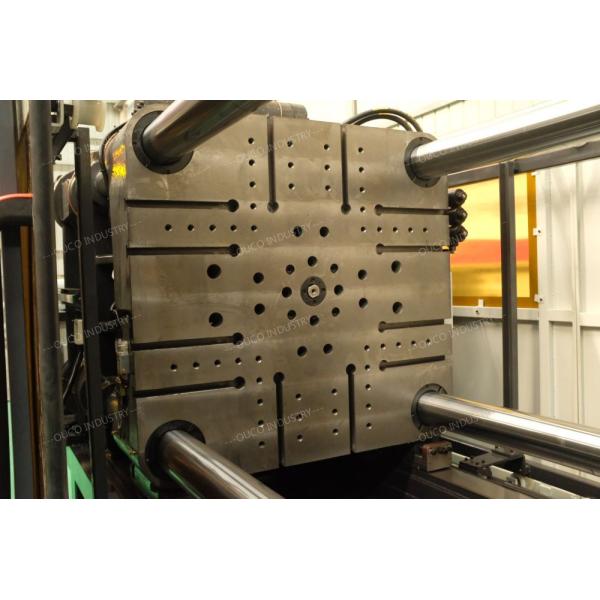

Detail Pictures
SGS Fruit Basket Thermoplastic Injection Molding Machine For Plastic Box

SGS Fruit Basket Thermoplastic Injection Molding Machine For Plastic Box
