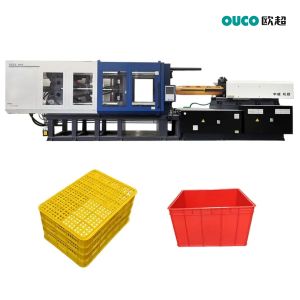

180T Efficiency Plastic Plastic Molding Machine Energy Saving Heating Device

Name: 180T Efficiency Plastic Plastic Molding Machine Energy Saving Heating Device
Brand: OUCO
Price: 1 USD

Buy cheap 180T Efficiency Plastic Plastic Molding Machine Energy Saving Heating Device product

Brand Name : OUCO

Model Number : OUCO-180T/220T

Certification : CE, ISO9001

Place of Origin : Wuxi, China

MOQ : 1

Price : Negotiable

Payment Terms : L/C, T/T, Western Union

Supply Ability : 500 sets per year

Delivery Time : 1 months

Packaging Details : shipping container

Product Name : 180T-220T High Quality Efficiency Plastic Molding Machine With Energy-Saving Heating Device

Plastic Processed : PP, PC,PVC

Applicable Industries : Manufacturing Plant, Food & Beverage Factory

Type : Automation

Warranty : 1 Year

Machinery Test Report : Provided

Selling Points : Competitive Price

Video outgoing-inspection : Provided

Machine Style : Horizontal

Condition : New

Lead time (days) : About 50 Days

Contact Now

180T-220T High Quality Efficiency Plastic Molding Machine With Energy-Saving Heating Device
Advantage of OUCO GFServo Plastic Molding Machine

1. Cleanliness, the equipment is free from external pollution, and the equipment does not generate regeneration pollution to the outside world.

2. Precision, the equipment molds the best quality products with extremely high quality repeatability, highest equipment stability and safety under the shortest possible cycle conditions.

3. Servo oil-electric control system, high response, high precision, closed-loop control of pressure and speed.

4. The fully enclosed design of the product forming area, plus the positive pressure laminar flow air conveying device, the forming area can be an independent cleaning system.

5. The mold clamping machine hinge adopts a circulating lubrication system to reduce the pollution caused by lubricating oil and keep the machine clean.

6. Using new materials, the sliding foot is self-lubricating, reducing the pollution of lubricating oil.

7. Simultaneous ejection function of mold opening, shortening molding cycle and increasing production capacity.

Product Paraments

GF快速系列


机型			CWI-180GF				CWI-220GF
合模装置	锁模力 Kn	Clamping Force	1800				2200
	拉杆间距 mm	Space Between Tie-bars	520×520				570×570
	开模最大开距 mm	Clamping Stroke	500				550
	最大模厚 mm	Mould Thickness Max	550				600
	最小模厚 mm	Mould Thickness Min	200				220
	模板尺寸 mm	Size of Platen	755×755				830×830
	顶出长度 mm	Ejector Stroke	140				170
	顶出力 Kn	Ejector Force	53				80
	顶针数	Ejector Quantily	5				9
注射装置	射胶装置	Injection Unit	420I		650I		650I		860I
	螺杆直径 mm	Screw Diameter	35	40	40	45	40	45	45	50
	螺杆长径比	Screw L/D ratio	24	21	24	21	24	21	23	21
	理论射胶容积 cm3	Shot Size	163	214	251	318	251	318	358	442
	注射重量 (PS)g	Shot Weight	150	196	231	293	231	292	329	406
	oz		5.3	6.9	8.2	10.3	8.2	10.3	11.6	14.3
	注塑压力 Mpa	Injection Pressure	256	196	256	202	256	202	256	207
	注射速度 mm/s	Injection Speed	238		182		228		180
	注塑速率 cm3/s	Injection Rate	229	229	229	290	286	363	286	354
	螺杆最大转速 rpm	Screw Speed	400		400		400		350
其他	油泵电机功率 Kw	Motor Power	36				48
	油泵排量 L/min		220				275
	电热功率 Kw	Heater Power	8.9		10.9		10.9		13
	机器净重 ton	Machine Weight	6.5				7.5
	机器尺寸(长×宽×高) mm	Machine Dimension	5455×1620×1820				5830×1640×1870

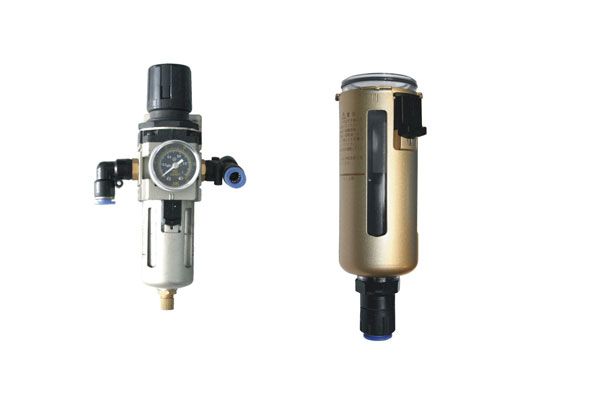

Detailed Pictures

180T Efficiency Plastic Plastic Molding Machine Energy Saving Heating Device
