OUCO 98T Hydraulic Servo Plastic Toothbrush Cup Injection Molding Machine

Name: OUCO 98T Hydraulic Servo Plastic Toothbrush Cup Injection Molding Machine
Brand: OUCO
Price: 1 USD

Buy cheap OUCO 98T Hydraulic Servo Plastic Toothbrush Cup Injection Molding Machine product

Brand Name : OUCO

Model Number : OUCO OC98H

Certification : CE, ISO9001:2008, SGS

Place of Origin : China

MOQ : 1

Price : Negotiable

Payment Terms : T/T, Western Union, L/C

Supply Ability : 500 sets/year

Delivery Time : 2 months

Packaging Details : Nude

Product Name : OUCO 98T High Quality Hydraulic Servo Plastic Toothbrush Cup Injection Molding Machine

Type : Automation

Function : Plastic Parts Production

Motor : Servo Energy Saving

Color : Support customization

Stable Performance : Short Cycle Time

Clamping Way : Hydraulic

Transport Package : FCL

Contact Now

OUCO 98T High Quality Hydraulic Servo Plastic Toothbrush Cup Injection Molding Machine

Since its establishment, OUCO Injection Molding Machine has continuously absorbed excellent cases from its peers and persisted in developing its own high-performance injection molding machines. Each specification of machine can be equipped with 2 or 3 different injection structures according to customer needs. We will as always as walk in the front of the market, fearless of hardships and challenges

Product Advantages

Our injection molding machine products are designed with energy saving and environmental protection factors in mind. They adopt servo motors and internal gear pump power systems to reduce energy consumption which are in line with the trend of sustainable development in today's society. OUCO injection molding machine injection unit adopts double-cylinder double-rail injection technology, which has fast injection response, high precision and low inertia. Advanced injection molding machine production technology ensures products with high molding accuracy, strength and durability.

Parameters

MODEL		OC98H
Clamping force (kN)	980
Space between tie bar (mm*mm)	360*360
Max. mold thickness (mm)	360
Min. mold thickness(mm)	150
Opening stroke (mm)	310
Ejector stroke(mm)	100
Ejector force forward(Kn)	27
Screw diameter(mm)	34
Screw L/D ratio	21.8
Theoretical injection volume (cm3)	131
Shot weight (PS) g	119
Injection pressure(MPa)	206
Screw speed (rpm)	0-220
Injection rate (g/s)	81.2
Motor power (Kw)	11
Oil tank capacity(L)	150
Heater power (Kw)	5.8
Machine Weight (Ton)	3.5
Machine size L×W×H (m)	4.11.251.8

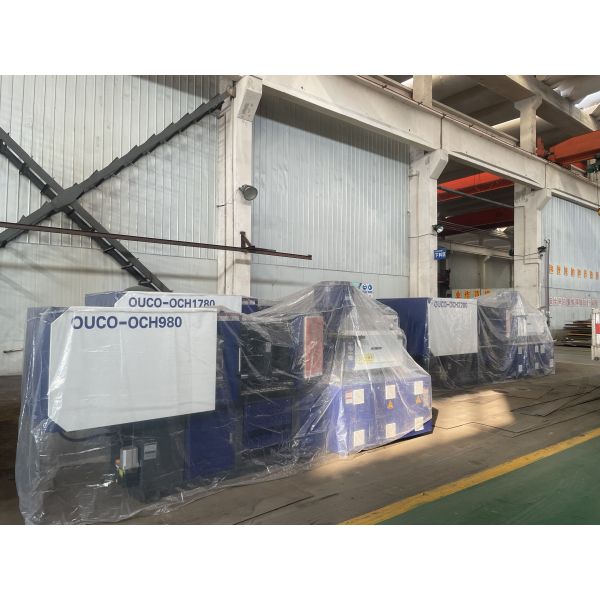

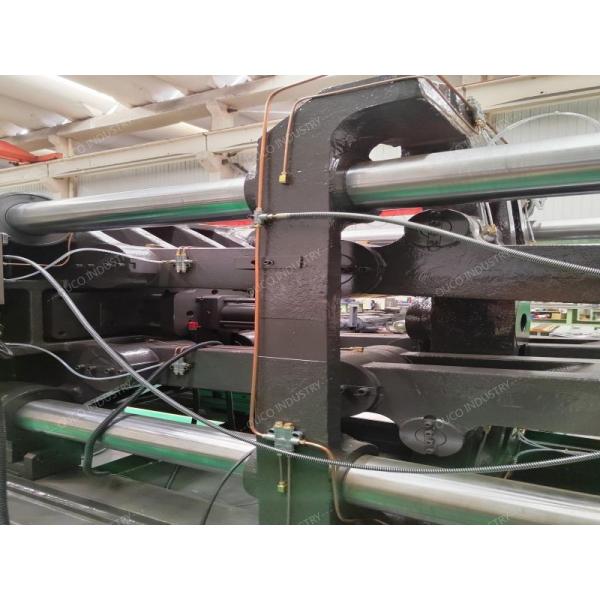

Detail Pictures
OUCO 98T Hydraulic Servo Plastic Toothbrush Cup Injection Molding Machine
